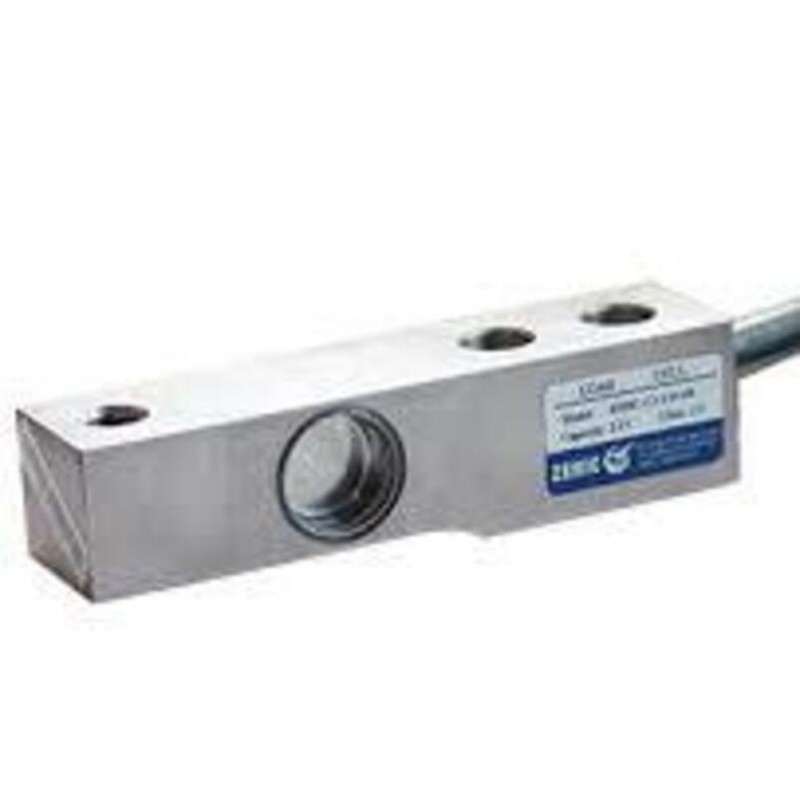

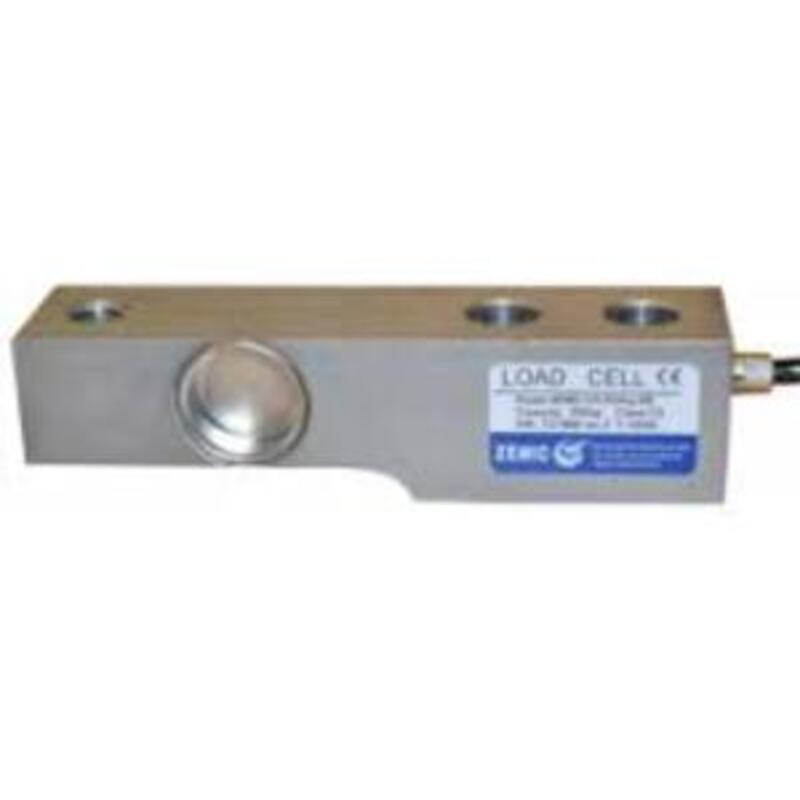

Load Cell ZEMIC HM8C 1ton Murah Bergaransi

  • Merk : ZEMIC
  • Minimal Pembelian : 1 Unit
  • Pengiriman : 0 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : KONTAK KAMI
  • Dilihat : 13 Kali
  • Pembaruan : 18-12-2025 01:07
Dapatkan Spesifikasi Harga Load Cell ZEMIC HM8C 1ton Murah Bergaransi Produk Terbaik dari CV. BERKAH TIMBANGAN INDONESIA Jual Timbangan Digital, Jual Load Cell, Jual Indikator Timbangan, Jual Anak Timbangan, Jual Alat Kemetrologian, Jasa Service Timbangan, Jasa Kalibrasi Timbangan & Jasa Tera Timbangan.

Produk Detail

Jual Load Cell ZEMIC HM8C 1ton dengan harga lebih murah, barang dijamin original, berkualitas bagus dan bergaransi resmi selama 2 tahun.

Produk detail Load Cell ZEMIC HM8C 1ton :
Merk : ZEMIC
Type : HM8C
Kapasitas : 1ton
Made in : China

Short description :
- Shear beam load cell
- Nickel plated alloy steel IP68
- Hermetically sealed
- Suitable for truck, track, hopper and other electronic weighing devices
- Includes HY-8-101 Load button

Specification :
- Accuracy Class : C3, OIML R60 C3, OIML R60 C4
- Output Sensitivity ( = FS ) : mV/V 2.0 ± 0.002
- Maximum Capacity ( Emax ) : 500kg, 1t, 2t, 3t, 5t, 10t, 15t, 20t, 25t, 30t
- Max. Number of Load Cell Intervals : nLC 3000
- Ratio of min. LC Verification Interval : Y = Emax 10000 / vmin 15000
- Combined Error : %FS ≤± 0.020
- Creep Error (30 minutes) : %FS ≤± 0.016
- Temperature Effect on Zero (ZTC) : %FS/10°C ≤± 0.015
- Temperature Effect on Sensitivity (STC) : %FS/10°C ≤± 0.011
- Zero Balance : %FS ≤± 1.0
- Safe Overload : %FS 150
- Ultimate Overload : %FS 300
- Excitation, Recommended Voltage : V 5 ~ 12
- Excitation, Maximum Voltage : V 18
- Input Resistance : Ω 400 ± 10
- Output Resistance : Ω 351 ± 3.0
- Insulation Resistance : (50V) MΩ ≥5000 ( at 50VDC )
- Compensated Temperature : °C -10 ~+40
- Operating Temperature : °C -35 ~ +65
- Storage Temperature : °C -40 ~ +70
- Load Cell Weight kg : 500kg – 3t : ~2.4 5t : 4.3 10-15t : 9.1 20t-25t : 30t : 26.1
- Element Material : Nickel plated alloy steel
- Ingress Protection (acc. to EN 60529) : IP68
- Recommended Torque on Fixation Bolts : Nm M12 : 75 M14 :120 M20 : 450 M27 : 1075 M33 :1975
- ATEX Classification (optional) : II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 200 135°C Da, II 3G Ex ic IIC T4 Gc

Features :
- Cable type : Shielded, 6 conductor cable, conductor AWG 24
- Cable diameter : Ø 6.2mm
- Cable length : 6.5m
- Cable jacket : PVC
- Shield not connected to element

Untuk informasi lebih lanjut mengenai produk Load Cell ZEMIC HM8C 1ton dan harga terbaiknya dari kami segera hubungi kami sekarang :
