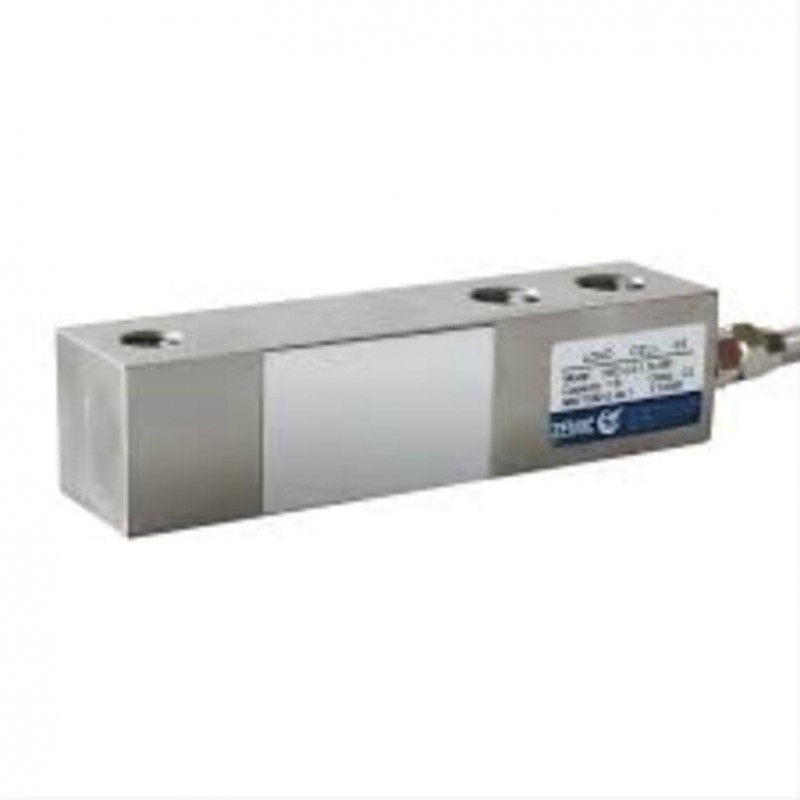

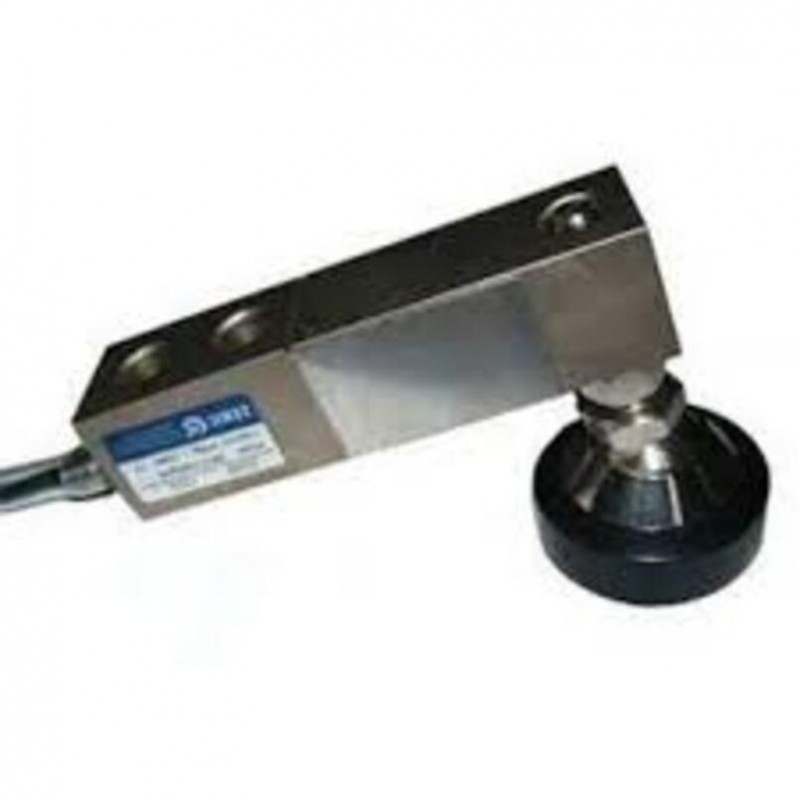

Load Cell ZEMIC H8C 3ton Murah Bergaransi

  • Merk : ZEMIC
  • Minimal Pembelian : 1 Unit
  • Pengiriman : 0 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : KONTAK KAMI
  • Dilihat : 30 Kali
  • Pembaruan : 18-12-2025 03:22
Dapatkan Spesifikasi Harga Load Cell ZEMIC H8C 3ton Murah Bergaransi Produk Terbaik dari CV. BERKAH TIMBANGAN INDONESIA Jual Timbangan Digital, Jual Load Cell, Jual Indikator Timbangan, Jual Anak Timbangan, Jual Alat Kemetrologian, Jasa Service Timbangan, Jasa Kalibrasi Timbangan & Jasa Tera Timbangan.

Produk Detail

Jual Load Cell ZEMIC H8C 3ton dengan harga lebih murah, barang dijamin original, berkualitas bagus dan bergaransi resmi selama 2 tahun.

Produk detail Load Cell ZEMIC H8C 3ton :
Merk : ZEMIC
Type : H8C
Kapasitas : 3ton
Made in : China

Short description :
- Shear beam load cell
- Nickel plated alloy steel IP67
- Suitable for platform weighing, container and tank scales, bed weighing, etc.
- High accuracy
- High reliability
- Current calibrated (SC-option)
- Optional T-hole force introduction available (W6 version)
- Optionally with through hole (W4 version)

Specification :
- Accuracy Class : OIML R60 C3, OIML R60 C4, OIML R60 C5
- Output Sensitivity ( = FS ) : mV/V 3.0 ± 0.003
- Maximum Capacity ( Emax ) : 100kg, 250kg, 500kg, 1t, 2t, 3t, 5t, 10t
- Max. Number of Load Cell Intervals : nLC 3000 4000 5000
- Ratio of min. LC Verification Interval : Y = Emax / vmin 10000 15000 20000 18000
- Combined Error : %FS ≤± 0.023 ≤± 0.018 ≤± 0.014
- Creep Error (30 minutes) : %FS ≤± 0.016 ≤± 0.012 ≤± 0.010
- Temperature Effect on Zero (ZTC) : %FS/10°C ≤± 0.015 ≤± 0.010 ≤± 0.007
- Temperature Effect on Sensitivity (STC) : %FS/10°C ≤± 0.011 ≤± 0.009 ≤± 0.008
- Zero Balance : %FS ≤± 1.0
- Safe Overload : %FS 150
- Ultimate Overload : %FS 300
- Maximum Deflection mm : 0.1t – 0.2t : 0.3 0.5t – 5t : ~ 1.2 10t : 0.8
- Excitation, Recommended Voltage V : 5 ~ 12
- Excitation, Maximum Voltage V : 18
- Input Resistance Ω : 350 ± 3.5
- Output Resistance Ω : 350 ± 3.5
- Insulation Resistance (50V) : MΩ ≥5000
- Compensated Temperature °C : -10 ~ + 40
- Operating Temperature °C : -35 ~ + 65
- Storage Temperature °C : -40 ~ + 80
- Load Cell Weight kg : 0.1t – 2.0t : ~ 0.9 2.5t – 5t : ~ 1.7 10t : ~ 3.6
- Element Material : Nickel plated alloy steel
- Ingress Protection (acc. to EN 60529) : IP67
- Recommended Torque on Fixation Bolts : Nm M12 : 100 M18 : 200 M24 : 700
- ATEX Classification (optional) : II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 200 135°C Da, II 3G Ex ic IIC T4 Gc

Features :
- Cable type : Shielded, 4 or 6 conductor cable, conductor AWG 22 (4-wire) & AWG 24 (6-wire)
- Cable diameter : Ø 5.0mm
- Cable length : 4m for 100kg – 2t, 6m for higher capacities
- Cable jacket : Polyurethane
- Shield not connected to element

Untuk informasi lebih lanjut mengenai produk Load Cell ZEMIC H8C 3ton dan harga terbaiknya dari kami segera hubungi kami sekarang :
