Load Cell ZEMIC H3F 1,5 Ton Murah Bergaransi

  • Merk : ZEMIC
  • Minimal Pembelian : 1 Unit
  • Pengiriman : 0 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : KONTAK KAMI
  • Dilihat : 19 Kali
  • Pembaruan : 19-12-2025 02:39
Dapatkan Spesifikasi Harga Load Cell ZEMIC H3F 1,5 Ton Murah Bergaransi Produk Terbaik dari CV. BERKAH TIMBANGAN INDONESIA Jual Timbangan Digital, Jual Load Cell, Jual Indikator Timbangan, Jual Anak Timbangan, Jual Alat Kemetrologian, Jasa Service Timbangan, Jasa Kalibrasi Timbangan & Jasa Tera Timbangan.

Produk Detail

Jual Load Cell ZEMIC H3F 1,5 Ton dengan harga lebih murah, barang dijamin original, berkualitas bagus dan bergaransi resmi selama 2 tahun.

Produk detail Load Cell ZEMIC H3F 1,5 Ton :
Merk : ZEMIC
Type : H3F
Kapasitas : 1,5 Ton
Made in : China

Short description :

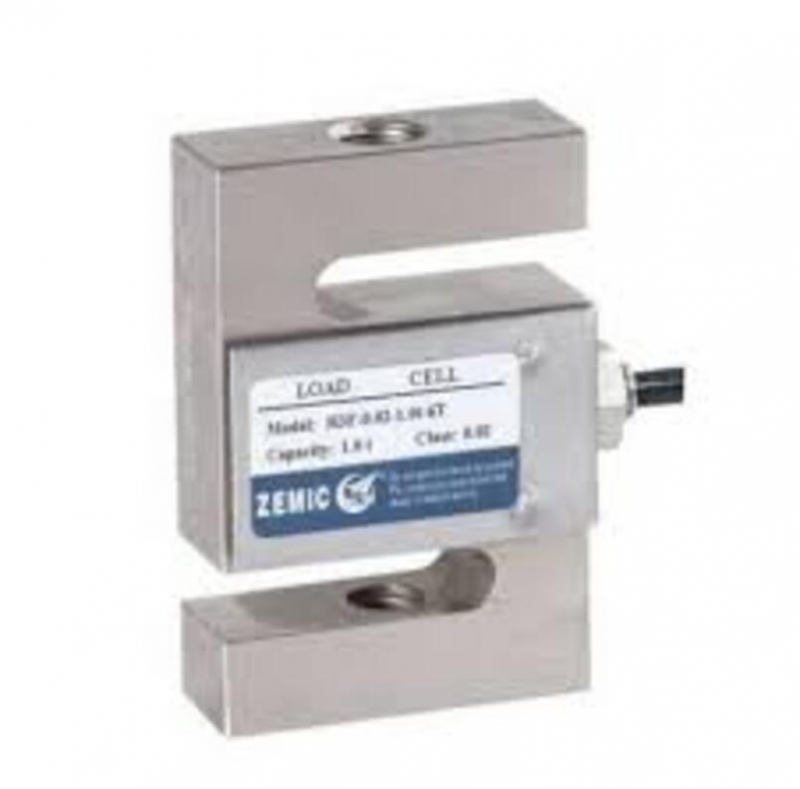

- S type load cell
- Nickel plated alloy steel IP67
- Tension and compression applications
- Suitable for hanging, hopper and other weighing devices
- Also available in imperial capacities and dimensions

Specification :
- Accuracy Class : C3
- Output Sensitivity ( = FS ) mV/V : 3.0 ± 0.008
- Maximum Capacity ( Emax ) : 100kg, 250kg, 500kg, 750kg, 1t, 1,5t, 2t, 2,5t, 5t
- Max. Number of Load Cell Intervals nLC : 3000
- Ratio of min. LC Verification Interval Y = Emax / vmin : 10000
- Combined Error %FS : ≤± 0.020
- Creep Error (30 minutes) %FS : ≤± 0.016
- Temperature Effect on Zero (ZTC) %FS/10°C : ≤± 0.015
- Temperature Effect on Sensitivity (STC) %FS/10°C : ≤± 0.011
- Zero Balance %FS : ≤± 1.5
- Safe Overload %FS : 150
- Ultimate Overload %FS : 300
- Maximum Deflection mm : 0.1935 ~ 0.4079
- Excitation, Recommended Voltage V : 5 ~ 12
- Excitation, Maximum Voltage V : 18
- Input Resistance Ω : 350 ± 3.5
- Output Resistance Ω : 351 ± 2.0
- Insulation Resistance (50V) MΩ : ≥5000 ( at 50VDC )
- Compensated Temperature °C : -10 ~+40
- Operating Temperature °C : -35 ~ +65
- Storage Temperature °C : -40 ~ +70
- Load Cell Weight kg : 0.1t – 1.5t : ± 0.6 ~ 0.8 2t – 5t : ± 1.5
- Element Material : Nickel plated alloy steel
- Ingress Protection (acc. to EN 60529) : IP67
- Recommended Torque on Fixation Bolts Nm : M10 : 50, M12 : 75 M18 : 300
- ATEX Classification (optional) : II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 200 135°C Da, II 3G Ex ic IIC T4 Gc

Features :
- Cable type : Shielded, 4 conductor cable, conductor AWG 22
- Cable diameter : Ø 5.0mm
- Cable length : 6m
- Cable jacket : Polyurethane
- Shield not connected to element

Untuk informasi lebih lanjut mengenai produk Load Cell ZEMIC H3F 1,5 Ton dan harga terbaiknya dari kami segera hubungi kami sekarang :
