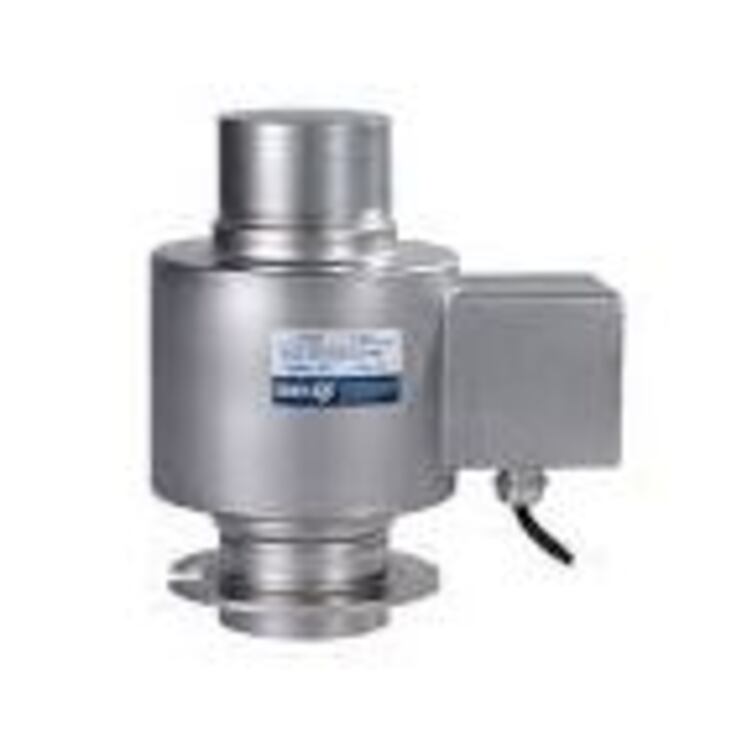

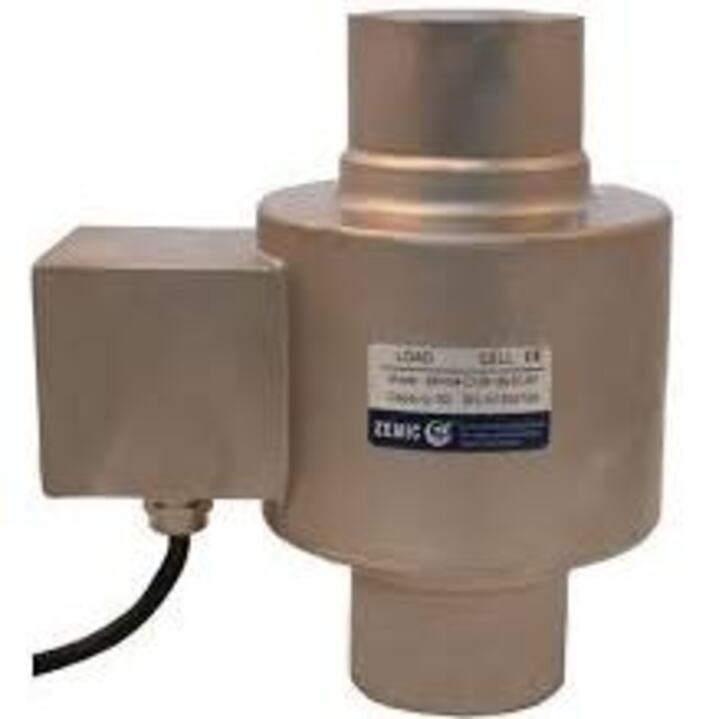

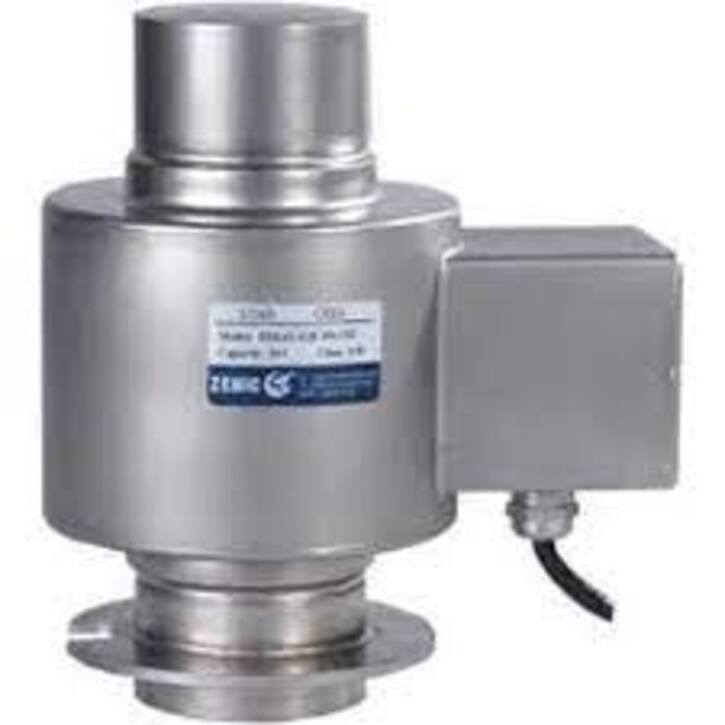

Load Cell ZEMIC BM14G 40ton Murah Bergaransi

  • Merk : ZEMIC
  • Minimal Pembelian : 1 Unit
  • Pengiriman : 0 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : KONTAK KAMI
  • Dilihat : 15 Kali
  • Pembaruan : 18-12-2025 00:22
Dapatkan Spesifikasi Harga Load Cell ZEMIC BM14G 40ton Murah Bergaransi Produk Terbaik dari CV. BERKAH TIMBANGAN INDONESIA Jual Timbangan Digital, Jual Load Cell, Jual Indikator Timbangan, Jual Anak Timbangan, Jual Alat Kemetrologian, Jasa Service Timbangan, Jasa Kalibrasi Timbangan & Jasa Tera Timbangan.

Produk Detail

Jual Load Cell ZEMIC BM14G 40ton dengan harga lebih murah, barang dijamin original, berkualitas bagus dan bergaransi resmi selama 2 tahun.

Produk detail Load Cell ZEMIC BM14G 40ton :
Merk : ZEMIC
Type : BM14G
Kapasitas : 40ton
Made in : China

Short description :
- Compression load cell
- Stainless steel IP68
- Hermetically sealed C of C no R60/2000-NL1-10.10
- Suitable for hopper scales and vehicle testing facilities
- Built-in surge arrestors
- Current calibrated (sc-option)

Specification :
- Accuracy Class : C3, OIML R60 C3, OIML R60 C4
- Output Sensitivity ( = FS ) : mV/V 2.0 ± 0.002
- Maximum Capacity ( Emax ) : 10t, 20t, 25t, 30t, 40t, 50t
- Max. Number of Load Cell Intervals : nLC 3000 4000
- Ratio of min. LC Verification Interval : Y = Emax / vmin 8800
- Combined Error : %FS ≤± 0.0230 ≤± 0.0175
- Creep Error (30 minutes) : %FS ≤± 0.015 ≤± 0.010
- Temperature Effect on Zero (ZTC) : %FS/10°C ≤± 0.015 ≤± 0.010
- Temperature Effect on Sensitivity (STC) : %FS/10°C ≤± 0.011 ≤± 0.009
- Zero Balance : %FS ≤± 1.0
- Safe Overload : %FS 150
- Ultimate Overload : %FS 300
- Maximum Deflection : mm 0.0059 ~ 0.0106
- Excitation, Recommended Voltage : V 5 ~ 12
- Excitation, Maximum Voltage : V 18
- Input Resistance : Ω 700 ± 7
- Output Resistance : Ω 700 ± 7
- Insulation Resistance (50V) : MΩ ≥5000
- Compensated Temperature : °C -10 ~ + 40
- Operating Temperature : °C -35 ~ + 65
- Storage Temperature : °C -40 ~ + 70
- Load Cell Weight : kg 4.0 ~ 4.5
- Element Material : Stainless Steel
- Ingress Protection (acc. to EN 60529) : IP68
- ATEX Classification (optional) : II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 200 135°C Da, II 3G Ex ic IIC T4 Gc

Features :
- Cable type : Shielded, 4 conductor cable, conductor AWG 22
- Cable diameter : Ø 5.0mm
- Cable lengths : (10t/20t) 15m, (20t/30t/50t) 20m, (30t/40t) 18m
- Cable jacket : Polyurethane
- Shield not connected to element

Untuk informasi lebih lanjut mengenai produk Load Cell ZEMIC BM14G 40ton dan harga terbaiknya dari kami segera hubungi kami sekarang :
