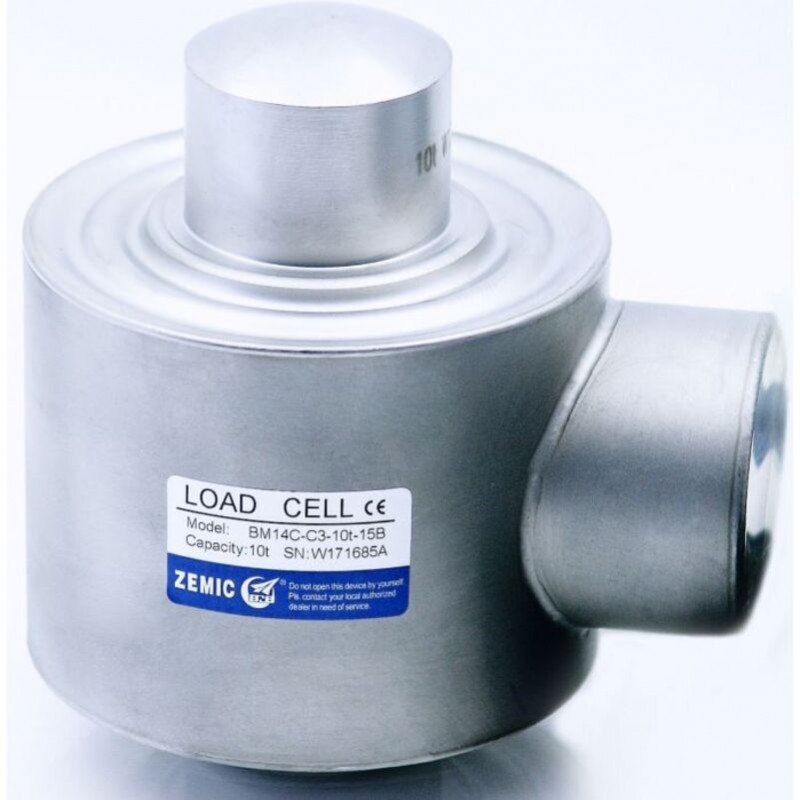

Load Cell ZEMIC BM14C 10ton Murah Bergaransi

  • Merk : ZEMIC
  • Minimal Pembelian : 1 Unit
  • Pengiriman : 0 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : KONTAK KAMI
  • Dilihat : 11 Kali
  • Pembaruan : 17-12-2025 23:22
Dapatkan Spesifikasi Harga Load Cell ZEMIC BM14C 10ton Murah Bergaransi Produk Terbaik dari CV. BERKAH TIMBANGAN INDONESIA Jual Timbangan Digital, Jual Load Cell, Jual Indikator Timbangan, Jual Anak Timbangan, Jual Alat Kemetrologian, Jasa Service Timbangan, Jasa Kalibrasi Timbangan & Jasa Tera Timbangan.

Produk Detail

Jual Load Cell ZEMIC BM14C 10ton dengan harga lebih murah, barang dijamin original, berkualitas bagus dan bergaransi resmi selama 2 tahun.

Produk detail Load Cell ZEMIC BM14C 10ton :
Merk : ZEMIC
Type : BM14C
Kapasitas : 10ton
Made in : China

Short description :
- Compression load cell
- Stainless steel IP68
- Hermetically sealed
- Suitable for vehicle and hopper scales and vehicle testing facilities
- Built-in surge arrestors
- High accuracy
- Current calibrated(SC-option)

Specification :
- Accuracy Class : C3, OIML R60 C3, OIML R60 C4
- Output Sensitivity ( = FS ) : mV/V 2.0 ± 0.002
- Maximum Capacity ( Emax ) : t 0.5, 1, 2, 3, 5 10, 20, 25, 30, 40, 50
- Max. Number of Load Cell Intervals : nLC 3000 4000
- Ratio of min. LC Verification Interval : Y = Emax / vmin 10000 15000
- Combined Error : %FS ≤± 0.023 ≤± 0.0174
- Creep Error (30 minutes) : %FS ≤± 0.016 ≤± 0.012
- Temperature Effect on Zero (ZTC) : %FS/10°C ≤± 0.015 ≤± 0.010
- Temperature Effect on Sensitivity (STC) : %FS/10°C ≤± 0.011 ≤± 0.009
- Zero Balance : %FS ≤ ± 1.0
- Safe Overload : %FS 150
- Ultimate Overload : %FS 300
- Excitation, Recommended Voltage V : 5 ~ 12
- Excitation, Maximum Voltage V : 18
- Input Resistance Ω : 700 ± 7
- Output Resistance Ω : 703 ± 4
- Insulation Resistance (50V) : MΩ ≥5000
- Compensated Temperature °C : -10 ~ +40
- Operating Temperature °C : -35 ~ +65
- Storage Temperature °C : -40 ~ +70
- Package Weight kg : 0.5t – 5t : 2.4 10t – 25t : 2.9 30t – 50t: 3.4
- Element Material : Stainless steel
- Ingress Protection (acc. to EN 60529) : IP68
- ATEX Classification (optional) : II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 200 135°C Da, II 3G Ex ic IIC T4 Gc

Features :
- Cable type : Shielded, 4 conductor cable, conductor AWG 22
- Cable diameter : Ø 5mm
- Cable length : 15m for C3 / 18m for C4 above 30t
- Cable jacket : Polyurethane
- Shield not connected to element

Untuk informasi lebih lanjut mengenai produk Load Cell ZEMIC BM14C 10ton dan harga terbaiknya dari kami segera hubungi kami sekarang :
