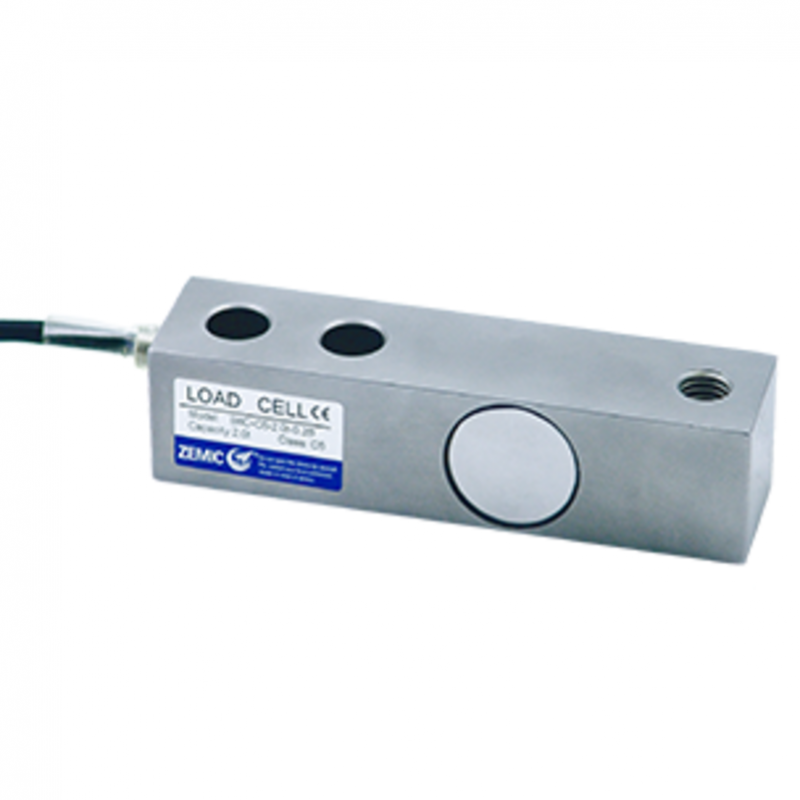

Load Cell ZEMIC B8D 5ton Murah Bergaransi

  • Merk : ZEMIC
  • Minimal Pembelian : 1 Unit
  • Pengiriman : 0 Hari Setelah Pembayaran
  • Lokasi : DKI Jakarta - Jakarta Barat
  • Harga : KONTAK KAMI
  • Dilihat : 19 Kali
  • Pembaruan : 18-12-2025 03:28
Dapatkan Spesifikasi Harga Load Cell ZEMIC B8D 5ton Murah Bergaransi Produk Terbaik dari CV. BERKAH TIMBANGAN INDONESIA Jual Timbangan Digital, Jual Load Cell, Jual Indikator Timbangan, Jual Anak Timbangan, Jual Alat Kemetrologian, Jasa Service Timbangan, Jasa Kalibrasi Timbangan & Jasa Tera Timbangan.

Produk Detail

Jual Load Cell ZEMIC B8D 5ton dengan harga lebih murah, barang dijamin original, berkualitas bagus dan bergaransi resmi selama 2 tahun.

Produk detail Load Cell ZEMIC B8D 5ton :
Merk : ZEMIC
Type : B8D
Kapasitas : 5ton
Made in : China

Short description :
- Shear beam load cell
- Stainless steel IP67
- Suitable for floor scales, platform scales, hopper and tank scales, patient lifts, etc.
- Current calibrated (sc-option)

Specification :
- Accuracy Class : OIML R60 C3, OIML R60 C4, OIML R60 C5
- Output Sensitivity ( = FS ) : mV/V 3.0 ± 0.008
- Maximum Capacity ( Emax ) : 250kg, 500kg, 1t, 2t, 3t, 5t
- Max. Number of Load Cell Intervals : nLC 3000 4000 5000
- Ratio of min. LC Verification Interval : Y = Emax / vmin 10000 7500 9000 10000 10000
- Combined Error : %FS ≤± 0.023 ≤± 0.018 ≤± 0.014
- Creep Error (30 minutes) : %FS ≤± 0.016 ≤± 0.012 ≤± 0.012
- Temperature Effect on Zero (ZTC) : %FS/10°C ≤± 0.015 ≤± 0.010 ≤± 0.014
- Temperature Effect on Sensitivity (STC) : %FS/10°C ≤± 0.011 ≤± 0.009 ≤± 0.007
- Zero Balance : %FS ≤± 1.0
- Safe Overload : %FS 150
- Ultimate Overload : %FS 300
- Maximum Deflection mm ~0.2 – 0.3
- Excitation, Recommended Voltage : V 5 ~ 12
- Excitation, Maximum Voltage : V 18
- Input Resistance : Ω 350 ± 3.5
- Output Resistance : Ω 350 ± 3.5
- Insulation Resistance : (50V) MΩ ≥5000
- Compensated Temperature : °C -10 ~ + 40
- Operating Temperature : °C -35 ~ + 70
- Load Cell Weight kg : 0.25t – 2t : 0.9 ~ 1.1 5t : 1.6
- Element Material : Stainless Steel
- Ingress Protection (acc. to EN 60529) : IP67
- Recommended Torque on Fixation Bolts : Nm M12 : 75 M20:450
- ATEX Classification (optional) : II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 200 135°C Da, II 3G Ex ic IIC T4 Gc

Features :
- Cable type : Shielded, 4 conductor cable, conductor AWG 22
- Cable diameter : Ø 5.0mm
- Cable length : 6m
- Cable jacket : Polyurethane
- Shield not connected to element

Untuk informasi lebih lanjut mengenai produk Load Cell ZEMIC B8D 5ton dan harga terbaiknya dari kami segera hubungi kami sekarang :
